The E°Darc family of drive components combines extensive functionality, excellent drive performance, and reliable protection for both people and machines.
Whether a simple compact controller or complex multi-axis systems for the highest demands – with the E°Darc family, you can configure drive systems that deliver extensive functionality and outstanding drive performance.
Safe Eckelmann drive systems minimize risks to technical components while simultaneously protecting operators and machines during operation.
We take on these challenges: The E°Darc Ci Safety components are certified according to IEC 61800-5-2 and comply with Safety Integrity Level 3 (SIL3).
In combination with our SLC89 safety controller, our drives can unleash their full performance via FSoE.
From straightforward transport tasks to complex applications: take advantage of our complete system to make your machine safe and future-ready!

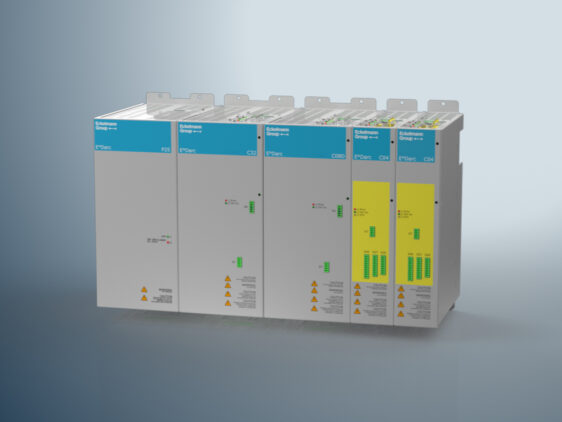

E°Darc Ci/Cr
Modular drive system for applications with high requirements for dynamics and accuracy
- Supply module and servo drives (single- and double-axis drives) in various options
- Mains connection 400 V AC, 3-phase
- Rated output current 4 to 32 A
- High performance control of synchronous, asynchronous and linear motors
- High frequency operation for spindle motors up to 30000 rpm
- Extensive safety functions integrated, FSoE interface and safe inputs/outputs
- Safe standstill monitor, SIL2
- UL-certified components available (E°Darc CiU/CrU)
- Fieldbus CANopen® or EtherCAT® (CoE)
- Position feedback:
EnDat®2, Hiperface®, resolver
SinCos, incremental encoder
Technical Documentation (E°EDP registration required):
E°DARC CE°Darc F04
Space-saving compact servo drive
for applications with medium to high requirements for dynamic and accuracy
- Mains connection: 230 V AC, single-phase
- Rated output current 4 A
- Controlled operation of synchronous, asynchronous and linear motors
- Integrated STO safety function, SIL3
- UL certification in preparation
- Fieldbus: EtherCAT® (CoE)
- Position feedback:
Incremental encoder
Absolute encoder, multiturn (battery-buffered)
EnDat® 2.2 encoder without battery - Integrated motor brake control
- Integrated measurement of DC link voltage for automatic PWM adaption
- Serial service interface (USB-C)
- Connection for external braking resistor
Technical Documentation (E°EDP registration required):
E°DARC F04E°Darc K04, E°Darc K10, E°Darc K313
Compact servo drives for applications with medium to high requirements for dynamics and accuracy
- Mains connection:
E°Darc K04, K10: 230 V AC, single-phase
E°Darc K313: 400 V AC, 3-phase - Rated output current
E°Darc K04: 4 A
E°Darc K10: 10 A
E°Darc K313: 13 A - Integrated STO safety function
in E°Darc K10, E°Darc K313 - E°Darc K10: UL-certified option available
- Fieldbus CANopen® or EtherCAT® (CoE)
- Position feedback:
Incremental encoder
Absolute encoder, multiturn (battery-buffered)
Technical Documentation (E°EDP registration required):
E°DARC KE°Darc S
Super compact low-voltage servo drive for applications with medium to high requirements for dynamics and accuracy
- Main power supply: 24 to 60 V DC
- Rated output current
E°Darc S05: 5 A
E°Darc S12: 12 A - Fieldbus CANopen® or EtherCAT® (CoE)
- Digital current, speed and position control
- Position feedback:
Absolute encoder, multiturn (battery-buffered) - Integrated motor brake control
- Advantages over stepper motor drives: high accuracy, high dynamics and constant torque over the entire speed range
Technical Documentation (E°EDP registration required):
E°DARC SIntuitive and professional. You decide in which mode you want to use the parameterization and diagnostic tool for Eckelmann drive technology.
On the one hand, the most important settings can be made easily and with dialog-guided assistance functions by trained machine operators. On the other hand, E°Tools Drive is a professional tool for developers, machine builders, commissioning engineers, and service technicians for commissioning, parameterization, and diagnostics of drives and motors.
Technical Documentation (E°EDP registration required):
E°DriveSetFunctional safety protects people and machines and minimizes risks to the technical components themselves. The E°DARC Ci safety components are certified according to IEC 61800-5-2 and meet Safety Integrity Level 3 (SIL3).
Technical Documentation (E°EDP Registration Required):
E°Darc Ci
