Hardware for E°SEE MAVIN

In addition to the well-known E°SEE CB camera models in a compact design with integrated lighting, Eckelmann offers a coordinated hardware catalog for perfect, customized configuration.

With Eckelmann’s contour scan, cutting parts can be reproduced for which there are no digital data.

The part to be replaced is placed on a sheet of paper, the contours are drawn with a permanent marker — manual corrections can already be made. In a second step, the E°SEE CB follows the line and creates the digital contour. This can either be used directly as a DIN program for a cutting process or as a DXF file for customer post-processing in the CAD/CAM system to recreate the part through a final DIN program.

Typical use cases for the contour scan are:

  • Reproduction of cutting parts
  • Rapid prototyping without the CAD/CAM detour
E°SEE CB

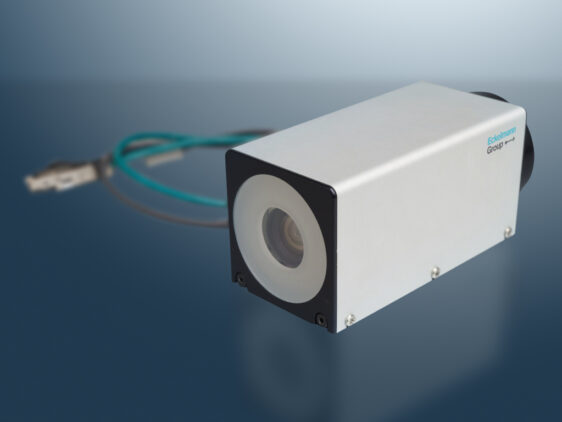

The E°SEE CB is suitable wherever a camera with integrated lighting is needed with minimal mechanical effort. All components are housed in a practical case that can be easily mounted on a machine with predefined attachment points.

The E°SEE CB is a complete camera system with:

  • Housing
  • High-resolution camera
  • Lens
  • Integrated ring lighting, multicolored
  • Internal power supply
  • Connection cable (0.5 m)
  • Network data connection

Technical Documentation (E°EDP Registration Required):

E°SEE CB
E°SEE CB 01

The E°SEE CB 01 with:

  • Monochrome camera
  • 12 mm lens
  • Preset distance of 500 mm

Technical Documentation (E°EDP Registration Required):

E°SEE CB 01
E°SEE CB 02

The E°SEE CB 02 with:

  • Monochrome camera
  • 25 mm lens
  • Unspecified preset distance

Technical Documentation (E°EDP Registration Required):

E°SEE CB 02
