System Central & Operation Terminal

Our refrigeration technology team provides expert advice on selecting the right components for your refrigeration system.

The system central is the brain of our solution for your refrigeration system. This is where all information converges.
Via the CAN-BUS system, the cooling point and compound unit controllers transmit all system information to the system central.

From there, it is sent to the LDSWin monitoring software and/or our Virtus Caelum cloud solution.

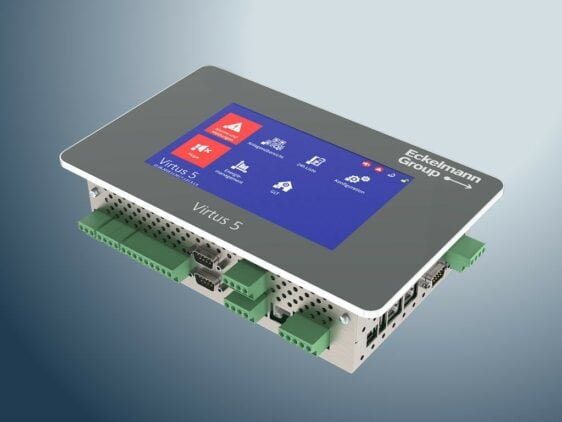

System Central Virtus 5 Series VSC 5x10

The system central is the central intelligence of the E*LDS system. It communicates via CAN-Bus with all components. Store managers or refrigeration technicians can access all system components directly via the system central or remotely via the Internet. Additional functions include:

  • Virtus Control Desk – Configuration and diagnostics of the system central via web browser
  • Connection to the Virtus Caelum Apps & Services refrigeration portal
  • Remote update function for existing systems

The following system centrals are available:

  • VSC 5410
  • S0-/M-Bus meters, BMS – Successor to CI 3000 | CI 4000 (without Modbus compact controller)
  • Modbus – Successor to CI 3000 | CI 3100 | CI 4100 (with Modbus compact controller)
  • LAN – Successor to CI 4400 | CI 5400
  • VSC 5510
  • VSC 5410 + CAN-Bus repeater – Successor to CI 4500 | CI 5400

The following accessories are available for the system central:
Expansion modules SIOX

Technical Documentation (E°EDP registration required):

Virtus 5 Series VSC 5x10
System Central CI 4000 Series and CI 5000

The system central CI 5×00 / CI 4×00 is the central intelligence of the E*LDS system. Customers communicate via CAN-Bus with all components. Store managers or refrigeration technicians can access all system components directly via the system central or remotely via the Internet.
The following accessories are available for the system central:
Expansion modules SIOX

Technical Documentation (E°EDP registration required):

CI 5000 Series / CI 4000 Series
Control Terminal AL 300

Control Terminal
AL 300 S – For control panel mounting
AL 300 W – For wall mounting

Technical Documentation (E°EDP registration required):

AL 300
