The Eckelmann CNC core is built on more than 40 years of experience in machine automation. The E°CUT solution for complete automation of all cutting technologies is the result of decades of development – complemented by the E°CUT HMI, which guides machine operators simply and intuitively.
Whether for light industry, high-definition, or combination machines: the E°CUT packages cover the entire spectrum of cutting automation and perfect laser, plasma, oxy-fuel, and waterjet cutting. The E°CUT HMI user interface ensures safe, simple, and intuitive operator guidance.
The functional scope of the E°CUT solution includes all standard features available on the market for cutting technologies – plus numerous options that go far beyond the basic command set, continuously refined through real-world experience.
Simple for customers and a response to the skilled labor shortage:
Eckelmann delivers all-in-one packages including CNC control, CAD/CAM, servo drives, motors, industrial PC, and software. The E°CUT solution stands out with one of the most modern user interfaces on the market.
At the heart of every E°CUT package are Eckelmann’s EXC880 or EXC89 control hardware, including Eckelmann’s proprietary CNC core. The solution also contains a fully programmed and tested PLC application – requiring no additional programming.
Through configuration alone, machine builders can realize different machine setups.
OEMs benefit from the E°CUT HMI as a tool for configuring the solution, commissioning the machine, and supporting service throughout the machine’s lifecycle.
Industry 4.0 integration is ensured via the OPC UA data model in the E°CUT HMI.
The HMI is the business card of your machine!
Promote your machine with convenient operation and a contemporary interface design.
-
HMI as a key element of corporate identity
-
Positive user experience for lasting customer loyalty
-
Easy software localization boosts international competitiveness
-
Flexible licensing models enable simple integration of features such as MES connectivity
-
User interfaces can be maintained and updated with minimal effort

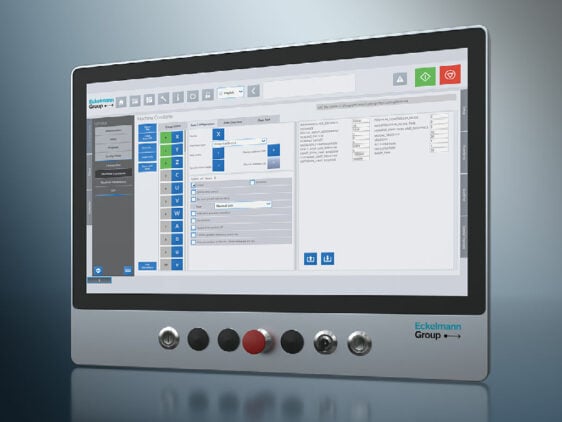

Fast and secure to the goal! For simple series machines, E°CUT ECO offers the perfect entry into the E°CUT world.
- Predefined machine configurations simplify commissioning
- All I/Os are available on the controller and can be wired immediately
- Drive technology can be quickly and easily connected via EtherCAT
- If needed, E°CUT ECO can be expanded with additional functionality through two extension modules
Technical Documentation (E°EDP registration required):
E°CUT ECOMaximum flexibility without programming effort! Machines with up to 12 cutting heads, bevel cutting, marking, and drilling. All on one machine — with E°CUT PRO, no problem.
- E°CUT PRO adapts to your needs and grows with your requirements
- As the machine becomes more complex, more I/O modules are connected to the controller as needed. E°CUT PRO automatically detects this and dynamically adjusts to your new requirements
Technical Documentation (E°EDP registration required):
E°CUT PROE°CUT ELEMENTS offers a quick and easy way to automate light industrial machines. Perfectly matched to the E°CUT ELEMENTS software, the plug-and-play box supports machines with a plasma or oxy-fuel cutting head as well as marking.
- Minimal commissioning time
- Space-saving box: 60cm x 50cm x 25cm
- Includes control unit, servo controller, cables and motors
- E°CUT HMI: modern, intuitive user interface
- Commissioning and service tool
- CAD/CAM software available as a perfect addition
